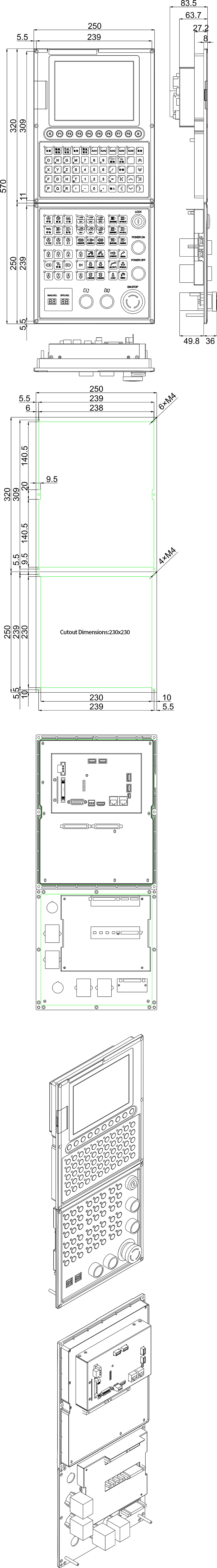

B Series 8-Inch CNC Milling System (Vertical)
400MA2-V
Follow frequency：次
Product type：400M Series
Follow frequency：次
Product type：400M Series
Product Introduction
1. High-definition LCD display.
2. Supports 3 or 4-axis CNC milling control (XYZ or XYZ + 4th axis).
3. Supports conventional graphical conversational programming for easy operation.
4. Comprehensive machining modes: not only supports standard milling operations, but also hole and thread machining including drilling, reaming, tapping, countersinking, boring, and milling various hole sizes, making it suitable for diverse workpieces.
5. EtherCAT or MECHATROLINK-III bus control for enhanced real-time performance and easier maintenance.
6. Optional IoT support for real-time access to machining data, enabling more efficient management.
Hardware Overview
1. Multi-core CPU architecture with a high-performance computing platform for smoother operation.
2. Equipped with 2GB storage, enabling smooth program execution and handling of diverse tasks.
3. High anti-interference design, compliant with 4.5KV EFT testing and CE certification.
4. Supports high-stability RS485 communication for more reliable peripheral device expansion.
5. High-speed USB 3.0 communication supported for faster data backup and program import.
6. Supports ultra-long power-off data retention for more reliable real-time user data logging.
7. High-resolution color display for clearer visuals.
8. Maximum I/O support up to 32 points.
9. Utilizes a high-performance CPU as the core computing unit of the CNC system, capable of processing and executing various CNC commands and data operations, ensuring system responsiveness and efficiency.
10. Program block pre-read speed up to 1000 Blocks/s.
11. Auxiliary panel with rotary switch for feedrate override and digital tube display of the current tool number for more user-friendly operation.
Software (Function) Overview
1. RT-Linux embedded control system platform.
2. Fully compiled execution modules.
3. Configurable IoT development platform.
4. Remote assistance for fault diagnosis and system upgrades.
5. Platform-based design concept.
6. 64-bit high-speed, high-precision contour control.
7. Conventional graphical conversational program editing.
8. Special curve machining: supports constant feedrate for parabolic and spline curves to improve surface finish.
9. High execution speed: short PLC scan time enables fast response to machining commands, enhancing productivity.
10. Supports various labeled milling machines, all types of compensation, and simple gantry axes.
11. Compatible with various tool changers such as umbrella, disc-type, and servo-driven magazines.
Special Features
1. High-Speed Drilling and Tapping
Adjustable tapping retract speed, up to 300%
Abnormal tapping error recovery
Overlapping drill-tap cycle boosts efficiency by 10%
Real-time tapping monitoring enables fast commissioning
2. Automatic Tool Length Measurement
Utilizes G31 function combined with an external sensor for automatic tool length measurement
Tool compensation is applied via a template program
High frequency response up to 20KHz provides an effective high-speed detection solution
Greatly reduces detection errors caused by low response speed or poor repeatability
3. Roundness Error Analysis
Circular interpolation function includes roundness error analysis
Supports velocity feedforward to reduce following error during high-speed machining and improve contour accuracy
Friction compensation reduces quadrant marks on contours or surfaces, enhancing surface quality
Product Series | 400M | 600M | 800M | |||
Function Selection | 400MA | 600MB | 800MC | |||
Product Model | 400MA1-H | 400MA2-H(V) 400MA3-H(V) 400MA4-V | 600MB2-H(V) | 600MB3-H(V) 600MB4-V | 800MC2-H(V) | 800MC3-H(V) 800MC4-V |
► System Specifications | ||||||
Installation Method | Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal | Vertical/Horizontal |
Display Screen Size | 7-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch | 8-inch / 10.4-inch / 15-inch |
Maximum Number of Axes (Including Spindle) | Standard 6 (maximum 6) | Standard 4 (maximum 6) | Standard 7 (maximum 14) | Standard 7 (Max 14) | Standard 7 (Max 28) | Standard 7 (Max 28) |
Maximum Number of Channels | Standard 1 (maximum 1) | Standard 1 (maximum 1) | Standard 1 (maximum 2) | Standard 1 (Max 2) | Standard 7 (Max 4) | Standard 7 (Max 4) |
Maximum Number of Linked Axes per Channel | 4 (XYZA) | 4 (XYZA) | 5 (XYZAB or XYZAC or XYZBC) | 5 (XYZAB or XYZAC or XYZBC) | 5 (XYZAB or XYZAC or XYZBC), with RTCP | 5 (XYZAB or XYZAC or XYZBC), with RTCP |
Maximum Number of Spindles per Channel | Standard 1 (maximum 1) | Standard 1 (maximum 1) | Standard 1 (maximum 3) | Standard 1 (Max 3) | Standard 1 (Max 10) | Standard 1 (Max 10) |
Application Scenarios (Axis Distribution) | Economic milling machines, simple milling machines, turret mills, desktop milling machines, drilling and tapping machines: | Machining centers, drilling and tapping machines: | Five-axis five-axis simultaneous machining center (with RTCP), multi-channel milling machine (three channels or more): | |||
DA/AD | Optional Expansion | Optional Expansion | Optional expansion | Optional expansion | Optional Expansion | Optional Expansion |
Operating System | LinuxRT | LinuxRT | LinuxRT | LinuxRT | LinuxRT | LinuxRT |
Memory | 1GB | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 4GB | 4GB | 8GB | 8GB | 8GB | 8GB |
Lookahead Blocks | 1000 blocks/second | 1000 blocks/second | 2000 blocks/s | 2000 blocks/s | 8000b/s | 8000b/s |
Maximum Tool Compensation Groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups |
Communication/Transfer | USB / RS485 / LAN / WIFI | USB / RS485 / LAN / WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI |
Bus Functions | EtherCAT Bus | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT |
Standard I/O | I16 / O16 | I16 / O16 | I16/O16 | I16/O16 | I16/O16 | I16/O16 |
Maximum Expandable I/O | I32 / O32 | I32 / O32 | I64/O64 | I64/O64 | I128/O128 | I128/O128 |
(IoT) Industrial Internet of Things | Optional | Optional | Optional | Optional | Optional | Optional |
Absolute Value Function | EtherCAT | MECHATROLINK-III, EtherCAT, MODBUS 485, SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Encoder | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Value | MECHATROLINK-III / EtherCAT / MODBUS485 / SSI Absolute Value |
► Program Functions | ||||||
Programming Instructions (G-Code) | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards | Compliant with International Standards |
Macro Program Programming Standard | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) | Supported(Macro B、Macro C) |
Background Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Interactive Intelligent Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Program Transfer via USB Drive | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Program Error Checking | Supported | Supported | Supported | Supported | Supported | Supported |
Program Lock Function | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) |
► Compensation Functions | ||||||
Five-Axis Tool Tip Control (RTCP) | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Smooth Tool Tip Function (Smooth TCP) | Supported | Supported | Supported | Supported | Supported | Supported |
► Compensation Functions | ||||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Corner Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Bidirectional Screw Error Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Dual Motor Drive Backlash Elimination | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Ram Deflection Compensation | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
► G-code Instructions | ||||||
High-precision trajectory control mode | Supported | Supported | Supported | Supported | Supported | Supported |
Path smoothing mode | Supported | Supported | Supported | Supported | Supported | Supported |
NURBS curve interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Thread cutting | Supported | Supported | Supported | Supported | Supported | Supported |
Tool offset | Supported | Supported | Supported | Supported | Supported | Supported |
High-speed peck drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Left-hand tapping cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Fine boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drill-bottom dwell cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Peck drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Tapping cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
High-speed drilling cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Semi-automatic fine boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Drill-bottom dwell boring cycle | Supported | Supported | Supported | Supported | Supported | Supported |
Multiple sets of high-speed and high-precision parameters | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
► High-speed and high-precision | ||||||
Spindle (C) Axis Dynamic Positioning | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) | No-stop switching; direct execution of positioning (requires servo spindle) |
Continuous Block Execution Mode | Supported | Supported | Supported | Supported | Supported | Supported |
CONSTANT JERK Control | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Angle Rotation Control | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Radius Speed Limitation | Supported | Supported | Supported | Supported | Supported | Supported |
NURBS Fitting | Supported | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
► Auxiliary Functions | ||||||
Custom startup screen | Supported | Supported | Supported | Supported | Supported | Supported |
Custom M-codes | Supported | Supported | Supported | Supported | Supported | Supported |
Custom G-codes | Supported | Supported | Supported | Supported | Supported | Supported |
Mixed use of bus axes and general-purpose axes | Not Supported | Supported | Supported | Supported | Supported | Supported |
IO redefinition function | Supported | Supported | Supported | Supported | Supported | Supported |
Tilt axis machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Tilt plane machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
DNC machining | Supported | Supported | Supported | Supported | Supported | Supported |
Proportional scaling | Supported | Supported | Supported | Supported | Supported | Supported |
Acceleration and deceleration types | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) | Linear (constant A), S-curve (constant JERK) |
Tool life management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management | Time limit / count limit management |
Protection functions | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection | Safety door, hard limit, soft limit, unclamped chuck detection, tool changer status detection |
Gear prediction | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function | Manual pulse generator (MPG) lookahead / MPG backtrack function |
Gear insertion break detection | Supported | Supported | Supported | Supported | Supported | Supported |
Restart function | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart | Automatic breakpoint search and restart, customized restart |
Multi-function handwheel | Supported | Supported | Supported | Supported | Supported | Supported |
Graphic simulation | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution | Graphical preview before program execution, dynamic path tracing during execution |
Access control management | Parameter access management | Parameter access management | Parameter access management | Parameter access management | Parameter access management | Parameter access management |
Perpetual calendar lock | Supported | Supported | Supported | Supported | Supported | Supported |
Axial load monitoring | Supported | Supported | Supported | Supported | Supported | Supported |
Oscilloscope function | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms | Real-time Monitoring of System Commands and Servo Feedback Waveforms |
Following error detection | Supported | Supported | Supported | Supported | Supported | Supported |
Spindle speed arrival detection | Supported | Supported | Supported | Supported | Supported | Supported |
Data backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup |
Quick tap retract for tapping | Supported | Supported | Supported | Supported | Supported | Supported |
Diverse tool magazines | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine | Disc Tool Magazine, Umbrella-Type Tool Magazine, Customized Tool Magazine |
Automatic tool alignment | Supported | Supported | Supported | Supported | Supported | Supported |
► Compound Functions | ||||||
Multi-channel Function | Not Supported | Not Supported | Supported (optional) 16 channels | Supported (optional) 16 channels | Supported (optional) 16 channels | Supported (optional) 16 channels |
Multi-spindle Tapping | Not Supported | Not Supported | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles | Maximum supported simultaneous tapping on 10 spindles |
Independent Channel Control for Robotic Arm | Not Supported | Not Supported | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code | Supported (optional) path planning using G-code |
► Tool | ||||||
IoT | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
Vision Inspection | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
CAD/CAM | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) | Supported(Optional) |
