EtherCAT Remote 16-Point Input / 16-Point Output Module
EC-2220
Follow frequency：次
Product type：IO
Follow frequency：次
Product type：IO
EtherCAT Blade-Type IO Module
16-channel INPUT and 16-channel OUTPUT
INPUT supports NPN/PNP input selection via wiring
OUTPUT supports a maximum continuous output current of 500mA
Built-in overcurrent automatic protection mechanism

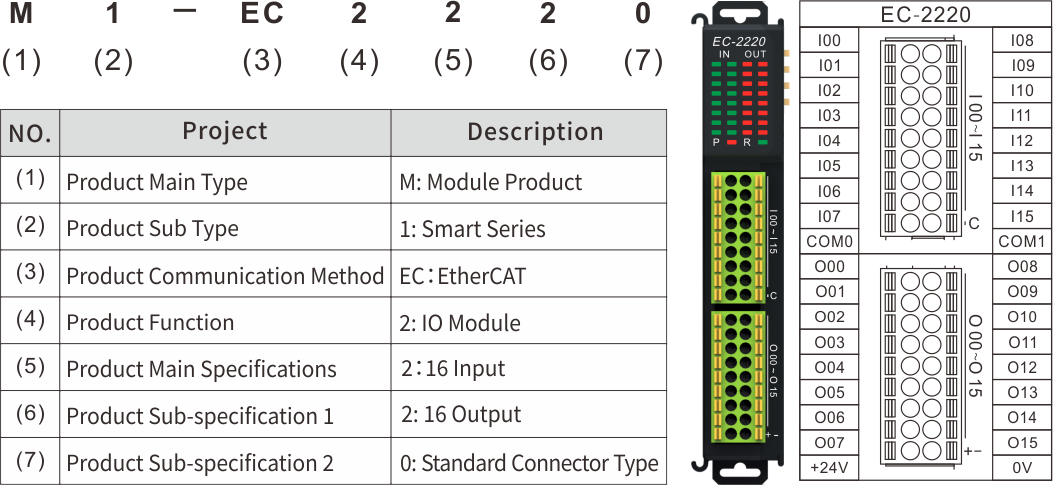

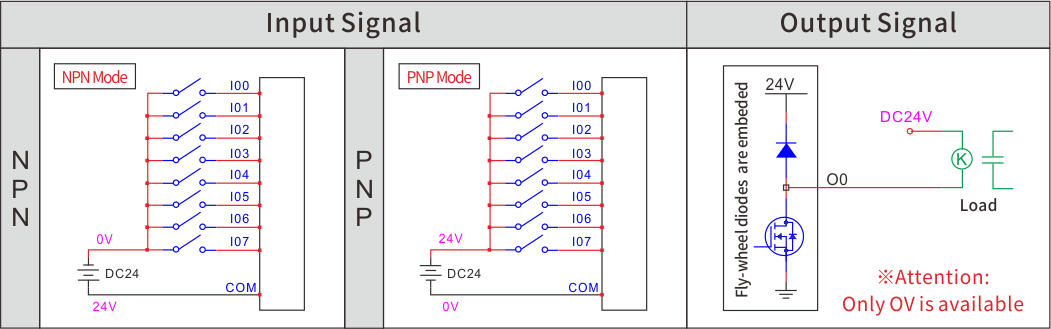

NPN/PNP Switching (Common Terminal Instructions for Input)
※ Note: Every 8 INPUT channels share an independent COM terminal for NPN/PNP mode switching.
For example:
COM0 applies only to I00~I07
COM1 applies only to I08~I15
COM2 applies only to I16~I23
COM3 applies only to I24~I31
Item | Specifications |
Task in EtherCAT System | Connects the EtherCAT Slave module to a 100BASE-TX EtherCAT network |
Number of EtherCAT Terminals | INPUT Points: 16 OUTPUT Points: 16 |
Output Circuit Type | Transistor |
Single-ended Output Port Current Range | Maximum 500mA per point |
NPN/PNP Input Switching | Supported |
Output Response Time | 800 µs |
Mounting Method | DIN rail mounted |
Dimensions | 21.5 mm (L) × 119 mm (W) × 70 mm (H) |
