Finger iLink Universal Digital Gateway

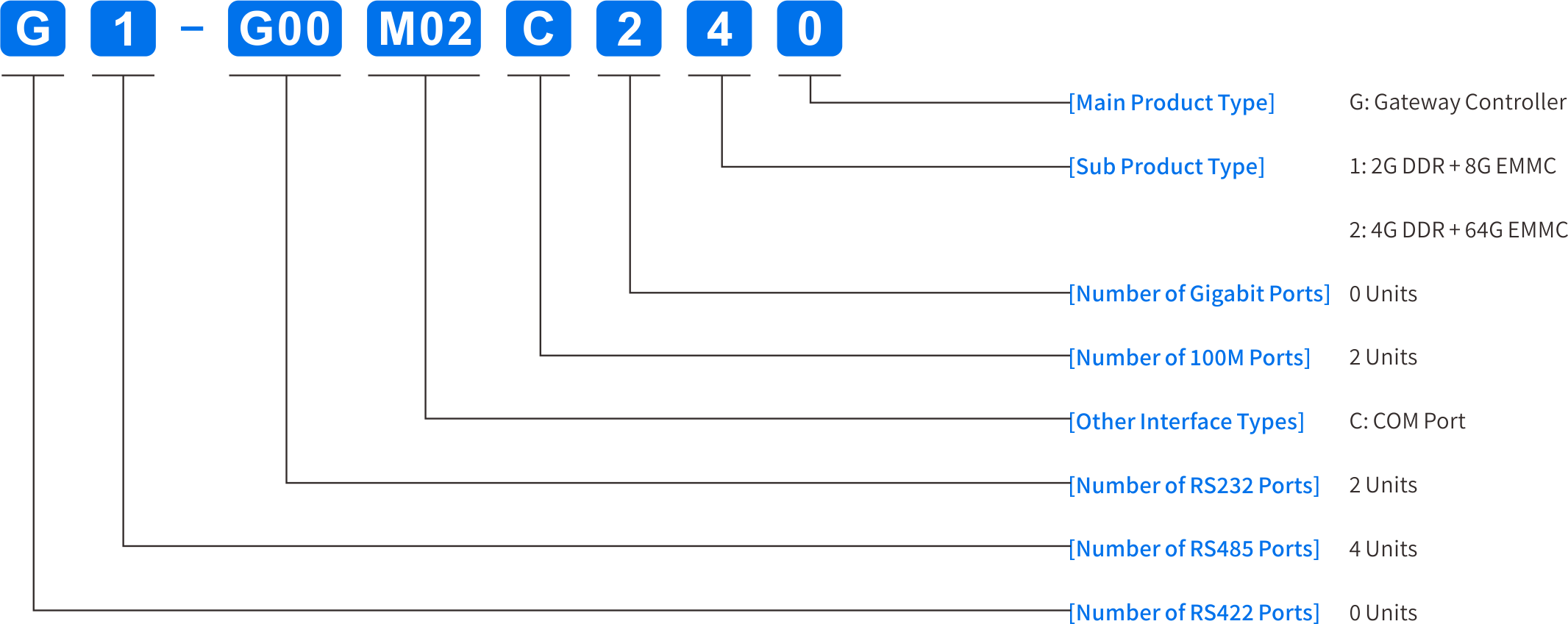

G1-G00M02C240
Follow frequency：次
Product type：Universal Digital Gateway
Follow frequency：次
Product type：Universal Digital Gateway
Product Introduction
Equipped with a wide range of communication interfaces, high-performance computing capabilities, and high-speed data transmission.
Supports integrated digital gateway functions, including various edge data collection methods, data forwarding, device time synchronization, and offline data buffering.
Supports dedicated data acquisition and communication protocols for products from Siemens, Omron, GE, and others.
Supports a variety of Linux tools, allowing users to dynamically deploy dependent modules and build a secondary development environment.
Users can freely deploy applications such as OpenCV, databases, Python executors, and more.
Product Features
Easy User Deployment
Supports Linux tools, significantly reducing the difficulty for maintenance personnel to deploy environments. Users can dynamically deploy environments such as vsFTP, Java, Python, and OpenCV as needed using the provided tools.
2. Edge Computing Capabilities
Supports various edge computing functions: intelligent data acquisition, data filtering, formula-based calculations, and data grouping strategies.
Enables data standardization across different devices, significantly reducing development costs.
3. Equipped with Lightweight Linux System
The system balances universality and user-friendliness while ensuring high execution efficiency, low redundancy, and minimal system resource usage, achieving an optimal balance between versatility and performance.
4. Integrated Digital Gateway Product Features
Rich data acquisition protocols.
Supports multiple protocol access to cloud platforms (MQTT, MODBUS, HTTP(s), etc.).
Supports customized protocol adaptation.
Supports functions such as acquisition project configuration, device maintenance, and real-time monitoring of collected and forwarded data.
Application Scenarios
Product Series | G | |||
Product Model | G1-G00M02C240 | G2-G00M02C240 | G3-G00M06C240 | G4-G00M06C240 |
►Basic Parameters | ||||
Chip Architecture | ARM A55 dual-core architecture | ARM A55 dual-core architecture | ARM A55 dual-core architecture | ARM A55 dual-core architecture |
CPU Clock Speed | Single-core performance: 2.0GHz | Single-core performance: 2.0GHz | Single-core performance: 2.0GHz | Single-core performance: 2.0GHz |
RAM | 2GB LPDDR4 | 2GB LPDDR4 | 2GB LPDDR4 | 2GB LPDDR4 |
Storage | 8GB EMMC 5.0 | 64GB EMMC 5.0 | 8GB EMMC 5.0 | 64GB EMMC 5.0 |
► Communication Interfaces | ||||
Serial Port | 6 serial communication ports, including 2 RS232 interfaces and 4 RS485 interfaces | 6 serial communication ports, including 2 RS232 interfaces and 4 RS485 interfaces | 6 serial communication ports, including 2 RS232 ports and 4 RS485 ports | 6 serial communication ports, including 2 RS232 ports and 4 RS485 ports |
Ethernet | 1 port 100Mbps adaptive Ethernet, 1 port 100Mbps network configuration port | 1 port 100Mbps adaptive Ethernet, 1 port 100Mbps network configuration port | 5 adaptive 100Mbps Ethernet ports and 1 100Mbps network configuration port | 5 adaptive 100Mbps Ethernet ports and 1 100Mbps network configuration port |
► Industrial-grade Protection | ||||
EMC | 4.5KV (power, coupling) | 4.5KV (power, coupling) | 4.5KV (power, coupling) | 4.5KV (power, coupling) |
Vibration (Operating / Storage) | 7mm@2~9Hz;2g@10~500Hz | 7mm@2~9Hz;2g@10~500Hz | 7mm@2~9Hz;2g@10~500Hz | 7mm@2~9Hz;2g@10~500Hz |
Operating Temperature | -20~85℃ | -20~85℃ | -20~85℃ | -20~85℃ |
Storage Temperature | -20~85℃ | -20~85℃ | -20~85℃ | -20~85℃ |
► Power Supply and Consumption | ||||
Power Supply Voltage | 24 VDC | 24 VDC | 24 VDC | 24 VDC |
Power Consumption | 10W | 10W | 10W | 10W |
Cooling Method | Natural cooling | Natural cooling | Natural cooling | Natural cooling |

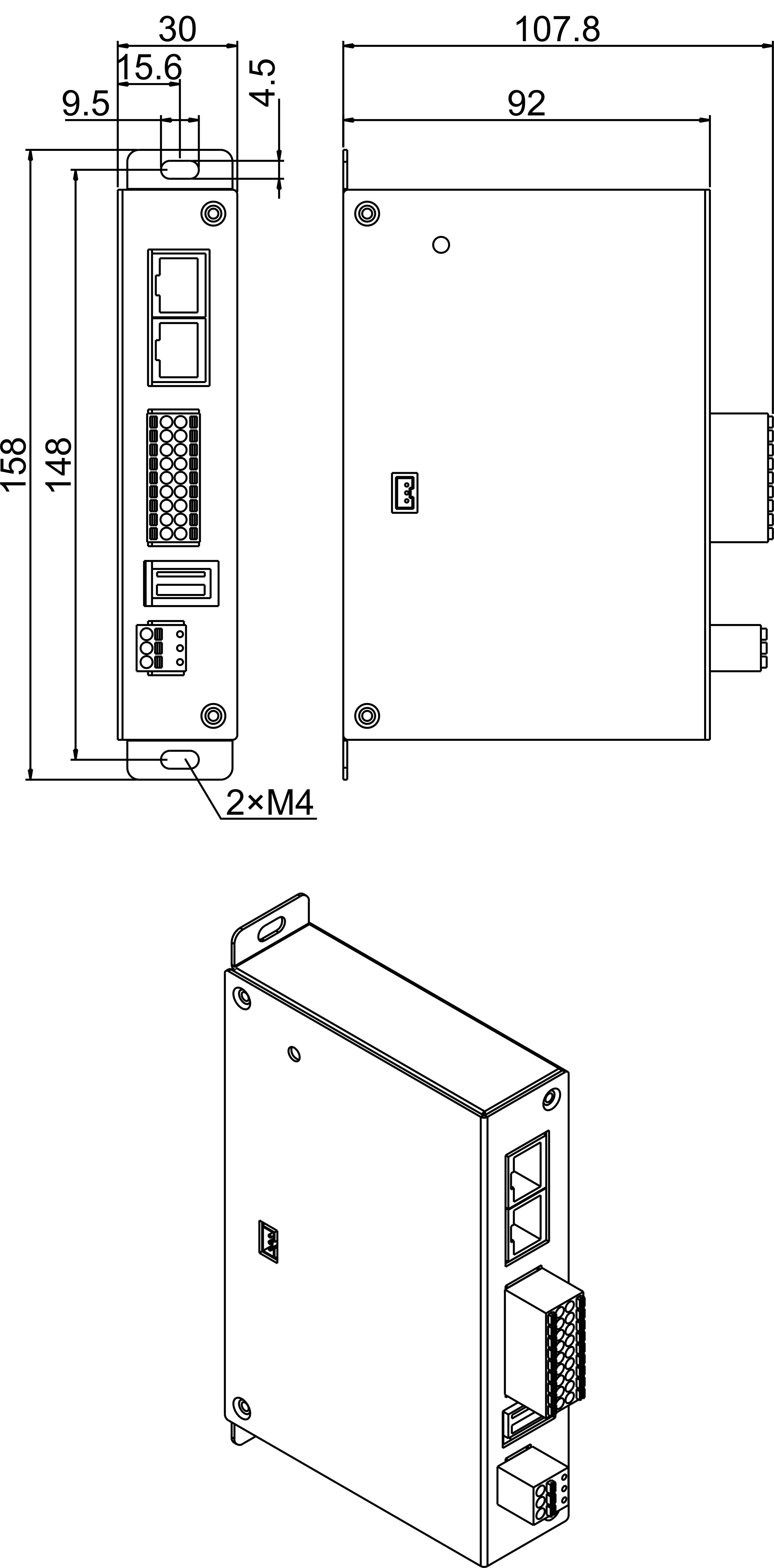

► Installation Dimensions | ||||
Installation Method | Flexible installation | Flexible installation | Flexible installation | Flexible installation |
Dimensions | 158*108*30 mm | 158*108*30 mm | 158*108*30 mm | 158*108*30 mm |
Weight (KG) | 0.6 | 0.6 | 0.6 | 0.6 |
Material and Appearance | Dark gray | Dark gray | Dark gray | Dark gray |
► Software System | ||||
Software Platform | Finger GateWay Link IDE | Finger GateWay Link IDE | Finger GateWay Link IDE | Finger GateWay Link IDE |
Acquisition Interface Library | 6 types, expandable | 6 types, expandable | 6 types, expandable | 6 types, expandable |
Data Processing Capability | 20000 Points | 20000 Points | 20000 Points | 20000 Points |
Operating System | Debian 11 | Debian 11 | Debian 11 | Debian 11 |
Forwarding Interface Library | 3 types, expandable | 3 types, expandable | 3 types, expandable | 3 types, expandable |
