B Series 10.1-Inch All-in-One Motion Control Touch Panel
NC-X3
Follow frequency：次
Product type：Touch Integrated Machine
Follow frequency：次
Product type：Touch Integrated Machine
Product Introduction
1. High-definition LCD display.
2. Variable data can be collected and stored in system memory or on an SD card via simple parameter settings. Data can also be saved, analyzed, and verified via Ethernet or USB.
3. EtherCAT or MECHATROLINK-III bus control ensures higher real-time performance and easier maintenance.
4. Supports IoT interfaces for real-time acquisition of machining data, simplifying management.
5. Expandable software modules can be added as plug-ins based on actual customer requirements.
6. Combines 2GB of RAM and 8GB of storage to deliver outstanding execution speed.
7. This product features high precision at its core, powered by high efficiency and enhanced flexibility, delivering excellent performance to suit a variety of application scenarios.

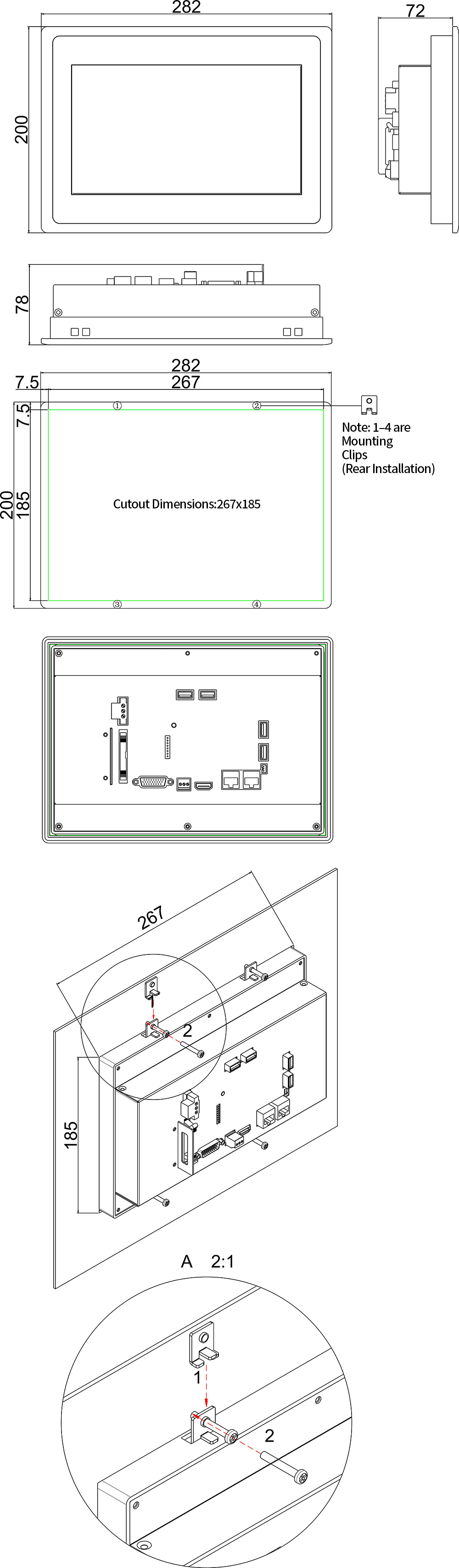

Hardware Introduction
1. Input Interfaces: Used to receive signals from external devices, such as key inputs on machine tool panels, signals from various sensors (e.g., position or temperature sensors), or CNC machining programs from external sources. Common input interface types include USB, serial ports, and Ethernet for convenient connectivity and data transfer.
2. Output Interfaces: Outputs control signals processed by the CNC system to machine actuators, such as drive motors, solenoid valves, and indicator lights. Signal types and formats must match connected components to ensure accurate execution.
3. Display: Typically equipped with an LCD or touchscreen to show the CNC system’s UI, programs, parameters, machine status, and alarms, facilitating operator monitoring and control.
4. Communication: Supports communication with external devices such as PCs for remote monitoring, program transfers, and system upgrades. Also enables networking with other CNC devices for collaborative operation and centralized management via wired (Ethernet, serial) or wireless (Wi-Fi, Bluetooth) methods.
5. Multi-Core CPU & High-Performance Platform: Delivers smooth and responsive user experience with industry-leading processing capabilities.
6. 2GB Storage: Ensures smooth program execution and efficient multitasking.
7. High Interference Resistance: Passed 4.5KV EFT testing and CE certification.
8. RS485 Communication: Supports stable and reliable communication with peripheral devices.
9. I/O Expansion: Supports up to 256 input/output points for controlling complex mechanisms.
10. Multi-Axis Control: Capable of controlling up to 64 axes, delivering exceptional flexibility.
11. USB 3.0 Port: Enables fast and convenient program transfers.
12. High-Speed Program Pre-reading: Up to 8000 blocks per second, ensuring powerful processing capacity.
Software (Function) Introduction
1. RT-Linux embedded control system platform.
2. Fully compiled execution module.
3. Configurable IoT development platform.
4. Remote support for diagnostics and upgrades.
5. Platform-based design concept.
6. 64-bit high-speed and high-precision contour control.
7. Conversational programming assistance.
8. Special Curve Machining: Supports constant linear-speed machining of parabolic and spline curves for improved surface finish. Spline teaching allows cubic polynomial fitting for smoother trajectories.
9. Open UI & PLC Integration: Enables customers to freely customize interfaces and features for a highly personalized experience.
10. Customizable Permissions: Enhances flexibility and system adaptability by allowing users to set access levels based on roles.
11. Supports graphical simulation, conversational programming, and custom M-code functionality.
12. High Execution Speed: Fast PLC scan times ensure quick response to machining instructions and improved efficiency.
13. Vision-Based Tracking: Automatically tracks workpiece positions and captures real-time data to simplify industrial automation.
14. Smart Camera Connectivity: Supports direct connection or PC-based mode for visual positioning and motion capture.
15. Multi-Camera Integration: Connects up to 8 vision systems to integrate images and analyze data from multiple cameras.
16. Servo Tension Control: Includes PID tuning and master ratio options; supports both nonlinear active and linear feedback master ratio modes.
17. Provides dedicated systems, servo drives, and UPS modules.
Product Series | NC-X1 | NC-X3 | NC-X4 | NC-X5 | NC-X8 |
► System Specifications | |||||
Display Size | 7-inch | 10.1-inch | 10.4-inch | 15-inch | 19-inch |
Maximum Number of Axes (Including Spindle) | Standard 6 (Maximum 40) | Standard 6 (Maximum 40) | Standard 6 (Maximum 40) | Standard 6 (Maximum 40) | Standard 6 (Maximum 40) |
Maximum Number of Channels | Standard 1 (Maximum 16) | Standard 1 (Maximum 16) | Standard 1 (Maximum 16) | Standard 1 (Maximum 16) | Standard 1 (Maximum 16) |
Maximum Number of Interpolated Axes per Channel | 6 | 6 | 6 | 6 | 6 |
Maximum Number of Spindles per Channel | 10 | 10 | 10 | 10 | 10 |
Operating System | RT Linux | RT Linux | RT Linux | RT Linux | RT Linux |
Memory | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 8GB | 8GB | 8GB | 8GB | 8GB |
Number of Blocks in Lookahead Buffer | 8000 blocks/s | 8000 blocks/s | 8000 blocks/s | 8000 blocks/s | 8000 blocks/s |
Maximum Number of Tool Compensation Groups | 160 groups | 160 groups | 160 groups | 160 groups | 160 groups |
Communication Interfaces | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI | USB/RS485/LAN/WIFI |
Maximum Expandable I/O | 256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) | 256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) | 256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) | 256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) | 256/256 (1ms 64 IN/OUT, 4ms 192 IN/OUT) |
Industrial Internet of Things (IoT) | Optional | Optional | Optional | Optional | Optional |
Absolute Positioning Function | SSI (6 groups, expandable up to 12 groups) | SSI (6 groups, expandable up to 12 groups) | SSI (6 groups, expandable up to 12 groups) | SSI (6 groups, expandable up to 12 groups) | SSI (6 groups, expandable up to 12 groups) |
► Compensation Functions | |||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported |
Arc Tip Compensation | Supported | Supported | Supported | Supported | Supported |
Bidirectional Ball Screw Error Compensation | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported |
► High-Speed and High-Precision | |||||
NURBS Fitting | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Supported | Supported | Supported | Supported | Supported |
► Auxiliary Functions | |||||
Customizable Startup Screen | Supported | Supported | Supported | Supported | Supported |
Mixed Use of Bus Axes and General-Purpose Axes | Supported | Supported | Supported | Supported | Supported |
IO Redefinition Function | Supported | Supported | Supported | Supported | Supported |
Tilted Axis Machining | Supported | Supported | Supported | Supported | Supported |
Tilted Plane Machining | Supported | Supported | Supported | Supported | Supported |
DNC Machining | Supported | Supported | Supported | Supported | Supported |
Proportional Scaling | Supported | Supported | Supported | Supported | Supported |
Acceleration and Deceleration Types | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) |
Electronic Cam and PID Control | Unlimited Number of Cam Curves,Each Channel Supports 16 Sets of PID for Unwinding and Rewinding | Unlimited Number of Cam Curves,Each Channel Supports 16 Sets of PID for Unwinding and Rewinding | Unlimited Number of Cam Curves,Each Channel Supports 16 Sets of PID for Unwinding and Rewinding | Unlimited Number of Cam Curves,Each Channel Supports 16 Sets of PID for Unwinding and Rewinding | Unlimited Number of Cam Curves,Each Channel Supports 16 Sets of PID for Unwinding and Rewinding |
Gear Prediction | Supported | Supported | Supported | Supported | Supported |
Gear Interruption | Supported | Supported | Supported | Supported | Supported |
Multi-Function Gear | Supported | Supported | Supported | Supported | Supported |
Graphical Simulation | Supported | Supported | Supported | Supported | Supported |
Permission Management | Supported | Supported | Supported | Supported | Supported |
Perpetual Calendar Lock | Supported | Supported | Supported | Supported | Supported |
Axial Load Monitoring | Supported | Supported | Supported | Supported | Supported |
Oscilloscope Function | Supported | Supported | Supported | Supported | Supported |
Follow Error Detection | Supported | Supported | Supported | Supported | Supported |
Data Backup | Supported | Supported | Supported | Supported | Supported |
► Compound Functions | |||||
Multi-Channel Function | Supported | Supported | Supported | Supported | Supported |
Independent Channel Control for Robotic Arms | Supported | Supported | Supported | Supported | Supported |
Comparison Between MECHATROLINK-III and EtherCAT
Product Series | MECHATROLINK-III | EtherCAT |
► System Specifications | ||
DA/AD | Standard 2 channels (non-expandable) | External module board (expandable up to 32 sets) 14BIT |
Bus Function | MECHATROLINK-III | EtherCAT |
General Purpose Axis Ports | Standard 2 sets (non-expandable) | External module board (expandable up to 32 sets) |
I/O | SIO | EtherCAT |
