B Series 8-Inch CNC Lathe System (Horizontal)
600TC2-H
Follow frequency：次
Product type：600T Series
Follow frequency：次
Product type：600T Series

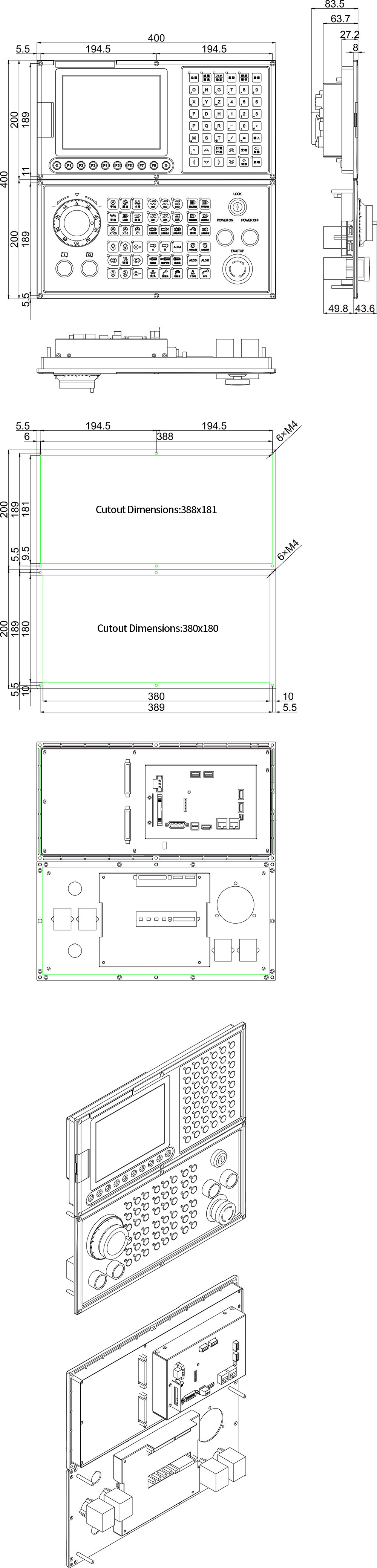

Product Overview
1. Y-axis Interpolation for Turn-Mill Compound: Adaptable to processing a wider variety of products and machine models.
2. Standard Dual-Spindle Configuration: Improves machining efficiency and supports multi-process machining.
3. Lathe + Robot Arm: Enables automatic loading and unloading, reducing manual labor.
Hardware Overview
1. Multi-core CPU architecture with a high-performance computing platform for smoother operation.
2. Equipped with 2GB of large storage, ensuring smooth program execution and easy handling of various tasks.
3. High anti-interference design, passed 4.5KV EFT test and CE certification.
4. Supports high-stability RS485 communication for more reliable peripheral expansion.
5. Supports high-speed USB 3.0 communication for faster data backup and program import.
6. Supports long-duration power-off data retention, providing more reliable real-time user data recording.
7. Capable of communication with external devices, such as data transmission with an upper computer (e.g., PC) for remote monitoring, program transfer, and system upgrades; or networking with other CNC devices for multi-machine collaborative operation and centralized management. Communication methods may include wired (e.g., Ethernet, serial port) and wireless (e.g., Wi-Fi, Bluetooth).
8. High-resolution window display for better visual effect.
9. Supports up to 128 IO points for control of more mechanisms.
10. Program pre-reading capability up to 4000 Blocks/s for stronger processing power.
11. Supports up to 11-axis control.
12. Mechanical button design on the operation panel for easier operation.
13. More ergonomic key layout and human-machine interface design for more convenient operation.
14. Rotary switch for feedrate override on the auxiliary panel and digital tube display for current tool number, providing more convenient operation.
Software (Features) Overview
1. Linux RT operating system for higher real-time performance and faster speed.
2. Open UI platform combined with PLC platform, supporting deep customization of interface and functional operation to meet diverse demands and highlight unique features.
3. Freely assignable permissions empower users with greater autonomy, ensuring flexible and efficient access to system resources.
4. Supports graphic simulation, conversational programming, and M-code customization.
5. Supports tool life management and operation log features.
6. Fast execution speed: short PLC scan time enables rapid response to machining commands and improves processing efficiency.
7. Integrated cold/hot machine compensation function enhances machining process stability and ensures better and more reliable quality.
8. Optional SSI absolute value communication provides high stability and interference resistance, enabling reliable operation in complex industrial environments.
9. Optional full closed-loop speed control (AB-phase feedback, SSI feedback) is available.
Featured Functions
1. Inclined Axis Machining (Y-axis Interpolation)
The inclined axis system mainly addresses the function of programming in an imaginary coordinate system (Cartesian system) while executing in an inclined coordinate system.The conversion between coordinates and movements is automatically completed by the system.
2. Spindle Speed Variation Control (SSV Technology)
During lathe machining, the SSV spindle speed variation control technology continuously changes the spindle speed to reduce the impact of turning vibrations. It effectively solves the problem of chatter when machining long bars without tailstock support, ensuring surface finish quality and reducing tool wear.
Product Series | 300T | 400T | 600T | 800T | ||
Function Selection | 300TA | 400TA | 400TB | 600TC | 800TC | |
Product Model | 300TA1-H | 300TA2-H（V） | 400TA2-H(V) | 400TB2-H(V) | 600TC2-H(V) | 800TC2-H(V) |
300TA3-H（V） | 400TA3-H(V) | 400TB3-H(V) | 600TC3-H(V) | 800TC3-H(V) | ||
300TA4-V | 400TA4-V | 400TB4-V | 600TC4-V | 800TC4-V | ||
► System Specifications | ||||||
Mounting Method | Horizontal | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical | Horizontal/Vertical |
Display Screen Size | 7 Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch | 8.4-Inch / 10.4-Inch / 15-Inch |
Maximum Number of Axes (Including Spindles) | Standard 5 (Maximum 5) | Standard 6 (Maximum 6) | Standard 9 (Maximum 9) | Standard 9 (Maximum 9) | Standard 11 (Maximum 11) | Standard 20 (Maximum 20) |
Maximum Number of Channels | Standard 1 (Maximum 1) | Standard 1 (Maximum 1) | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 3 (Maximum 3) |
Maximum Number of Interpolated Axes per Channel | 3 (XZC) | 3 (XZC) | 3（XZC） | 4（XYZC） | 4(XYZC) | 5(XYZAC) |
Maximum Number of Spindles per Channel | Standard 2 (Maximum 2) | Standard 2 (Maximum 2) | Standard 3 (Maximum 3) | Standard 3 (Maximum 3) | Standard 4 (Maximum 4) | Standard 6 (Maximum 9) |
Application Scenarios (Axis Distribution) | Single Channel: | Single Channel: | Single Channel: (XZABC + Axis-Controlled Turret + Positioning Axis) | Single Channel: (XYZABC + Turret Axis + Servo Tailstock + Positioning Axis) | Single Channel: | Dual Channel: |
DA/AD | Optional | Optional | Optional | Optional | Optional | Optional |
Operating System | Linux RT | Linux RT | Linux RT | Linux RT | Linux RT | Linux RT |
Memory | 2GB | 2GB | 2GB | 2GB | 2GB | 2GB |
Program Capacity | 8GB | 8GB | 8GB | 8GB | 8GB | 8GB |
Pre-read Block Count | 1000 Blocks/s | 1000 Blocks/s | 2000 Blocks/s | 2000 Blocks/s | 4000 Blocks/s | 8000 Blocks/s |
Maximum Tool Compensation Groups | 40 Groups | 40 Groups | 160 Groups | 160 Groups | 160 Groups | 160 Groups |
Communication | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI | USB / RS232 / RS485 / LAN / WIFI |
Standard I/O | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 | Bus I/O (excluding pulse ports): I16 / O16 |
Maximum Expandable I/O | I32 / O32 | I32 / O32 | I64 / O64 | I64 / O64 | I128 / O128 | I256 / O256 |
(IoT) Industrial Internet of Things | Optional | Optional | Optional | Optional | Optional | Optional |
Bus Servo | MECHATROLINK-III (optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT | MECHATROLINK-III (Optional), EtherCAT |
Bus Spindle | Supports | Supports | Supported | Supported | Supports | Supports |
Communication Functions | Modbus TCP, RS232, RS485 | Modbus TCP, RS232, RS485 | ModbusTcp、RS232、RS485 | ModbusTcp、RS232、RS485 | Modbus TCP, RS485, SSI Absolute Encoder (Optional) | Modbus TCP, RS485, SSI Absolute Encoder (Optional) |
► Program Functions | ||||||
Programming Instructions (G-Code) | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards | Complies With International Standards |
Macro Program Programming Standards | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) | Supports (Macro B, Macro C) |
Background Programming | Supported | Supported | Supported | Supported | Supported | Supported |
Conversational Intelligence | Supported | Supported | Supported | Supported | Supported | Supported |
Program USB Transfer | Supported | Supported | Supported | Supported | Supported | Supported |
Automatic Program Error Checking | Supported | Supported | Supported | Supported | Supported | Supported |
Program Lock Function | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) | Restricted Program Editing (Optional) |
► Synchronous Axis Control | ||||||
Simultaneous Thread Cutting With Main Spindle | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Dual-Channel Spindle Synchronization | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Axis Coupling / Swapping / Hybrid | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
►Robot | ||||||
Robot Independent Channel Control | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
► Turret | ||||||
Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret | Electric Turret, Hydraulic Turret, Servo Turret, Axis-Controlled Turret |
► High Speed, High Precision | ||||||
Spindle (C) Axis Dynamic Positioning | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) | Non-Stop Mode Switching, Direct Positioning Execution (Requires Servo Spindle) |
Rapid Retraction for Turning/Tapping | Supported | Supported | Supported | Supported | Supported | Supported |
Non-Stop Mode Between Sections | Supported | Supported | Supported | Supported | Supported | Supported |
Full Closed-Loop Control Function | Not Supported | Supported | Supported | Supported | Supported (Speed Control Full Closed Loop (AB Phase Feedback, SSI Feedback – Optional)) | Supported (Speed Control Full Closed Loop (AB Phase Feedback, SSI Feedback – Optional)) |
► Compensation Functions | ||||||
Taper Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Backlash Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Arc Corner Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Bidirectional Lead Screw Error Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Feedforward Compensation | Supported | Supported | Supported | Supported | Supported | Supported |
Hot and Cold Machine Temperature Compensation | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
► Programmable Tailstock (Servo Tailstock) | ||||||
Programmable Tailstock | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
► Cutting Functions | ||||||
Parabolic Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Elliptical Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Cylindrical Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
3D Arc Interpolation | Not Supported | Not Supported | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System | Spatial Spherical Interpolation Within Any Arbitrary Three-Axis Cartesian Coordinate System |
Polygon Interpolation (Flying Cutter) | Supported | Supported | Supported | Supported | Supported | Supported |
Polar Coordinate Interpolation | Supported | Supported | Supported | Supported | Supported | Supported |
Tapping | G84/G88 | G84/G88 | G84/G88（Supported(Tapered Tapping)） | G84/G90（Supported(Tapered Tapping)） | G84/G92(Tapered Tapping) | G84/G96(Tapered Tapping) |
Thread Cutting | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning | Thread Cycle Turning, Multi-Start Threads, Arc Threads, Helical Threads, Variable Pitch Threads, and Other Thread Turning |
Chip Breaking Turning | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) | Second Generation (Linear, Arc, Thread Chip Breaking) |
► Common Axes | ||||||
Common Spindle | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
► Spindle SSV Control | ||||||
Spindle SSV | Not Supported | Not Supported | Not Supported | Supported | Supported | Supported |
► Auxiliary Functions | ||||||
Custom Startup Screen | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Custom M Codes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Custom G Codes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Mixed Use of Bus Axes and Generic Axes | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
I/O Redefinition Function | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Tilt Axis Machining (Y Interpolation) | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Tilted Plane Machining | Not Supported | Not Supported | Not Supported | Not Supported | Supported | Supported |
Dynamic Hydraulic Control (DHC) Machining | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Proportional Scaling | Not Supported | Not Supported | Supported | Supported | Supported | Supported |
Acceleration/Deceleration Types | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) | Linear Type (Constant Acceleration), S-Type (Constant Jerk) |
Tool Life Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management | Time Limit / Usage Limit Management |
Protection Functions | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection | Safety Door, Hard Limits, Soft Limits, Chuck Not Clamped Detection, Turret Tool Change Detection |
Handwheel Prediction | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function | Program Prediction / Program Backtracking Function |
Handwheel Interpolation Cutoff | Supported | Supported | Supported | Supported | Supported | Supported |
Restart Function | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart | Automatic Program Breakpoint Detection and Restart, Custom Restart |
Multifunctional Handwheel | Supported | Supported | Supported | Supported | Supported | Supported |
Graphical Simulation | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution | Program Execution Pre-View, Dynamic Graphic Tracing During Execution |
Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management | Parameter Permission Management |
Perpetual Calendar with Machine Lock | Supported | Supported | Supported | Supported | Supported | Supported |
Axial Load Monitoring | Supported | Supported | Supported | Supported | Supported | Supported |
Oscilloscope Function | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms | Real-Time Monitoring of System Commands and Servo Feedback Waveforms |
Following Error Detection | Supported | Supported | Supported | Supported | Supported | Supported |
Spindle Speed Arrival Detection | Supported | Supported | Supported | Supported | Supported | Supported |
Data Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup | Program Backup, Parameter Backup, Tool Compensation Backup |
► Five-Axis Interpolation | ||||||
RTCP | Not Supported | Not Supported | Not Supported | Optional | Optional | Optional |
► Tool | ||||||
IoT | Optional | Optional | Optional | Optional | Optional | Optional |
Visual Inspection | Optional | Optional | Optional | Optional | Optional | Optional |
