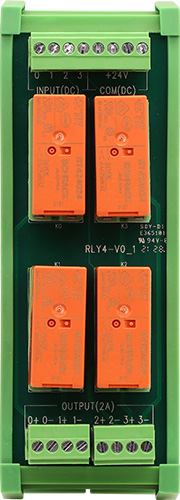

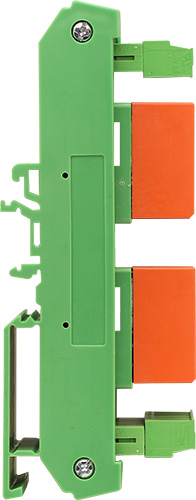

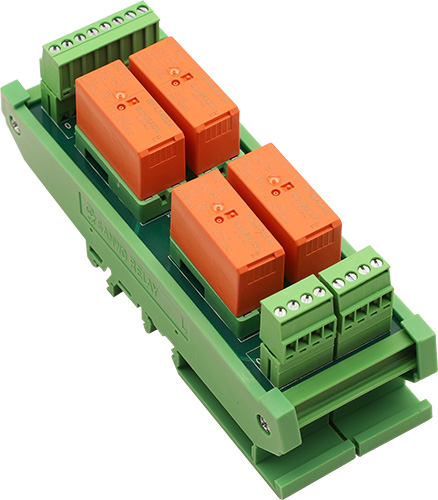

SIO 4-Channel Relay Interface IO Module
RLY4\V0
Follow frequency：次
Product type：Expansion Module
Follow frequency：次
Product type：Expansion Module
1. 24V control signal input, maximum driving current <40mA
2. Used with SIO/EtherCAT type IO modules
3. RELAY AC/DC 0~240V (2A) output
4. Detachable European standard 3.5 PITCH terminal block
Contact Current | Lifespan times |
16A | 100x10³ |
12A | 130x10³ |
8A | 170x10³ |
4A | 260x10³ |
2A | 600x10³ |
1A | 1.5x10⁶ |
