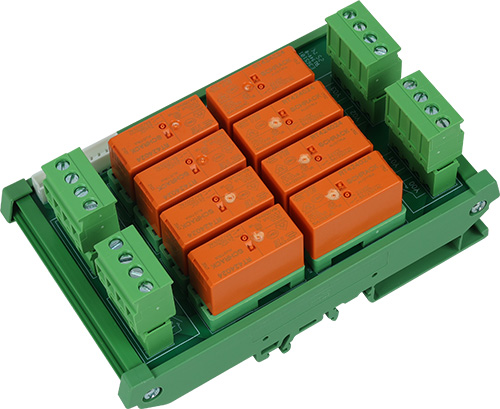

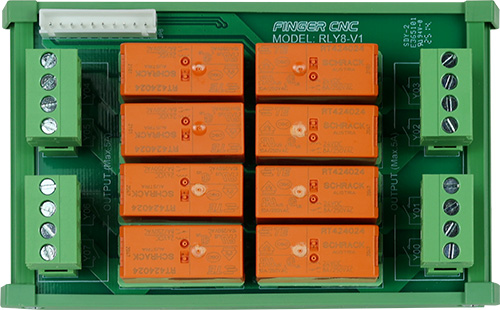

8-channel relay interface module
RLY8-V1
Follow frequency：次
Product type：Expansion Module
1. 24V control signal input, maximum drive current <40mA
2. Used in conjunction with ESC-I32O32A2 module to expand relay outputs
3. RELAY AC/DC 0\~240V (2A) output
4. Removable European-style 5.08 PITCH terminal blocks
Contact Current | Lifespan times |
16A | 100x10³ |
12A | 130x10³ |
8A | 170x10³ |
4A | 260x10³ |
2A | 600x10³ |
1A | 1.5x10⁶ |
